Description

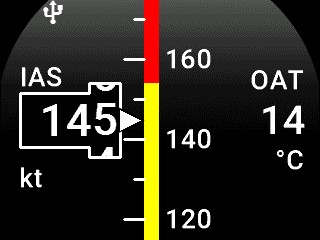

Omnia ASI-OAT 80mm is a compact and reliable instrument that integrates a precise and calibrated sensor to measure the aircraft’s airspeed. With a maximum measurable speed of 500 km/h, it can be used on the overwhelming majority of light aircraft.
All the components of the Omnia family are equipped with a state-of-the-art, highly visible display, a powerful 32-bit microcontroller, and the latest generation of solid-state sensors and components to ensure reliability and accuracy over time.
Omnia ASI-OAT 80mm can be interfaced with the Rotax engine’s “i” series through the CAN bus.
Up to 16 Omnia family instruments can be connected in the clusters to form a communication network, making some data exchange operations simpler.
Main features
Included gauges:
- Air Speed Indicator
- Outside Air Temperature
Interfaces:
- Knob with pushbutton
- 2 CAN bus
- Light Sensor input
- USB 2.0 port
- Static and pitot ports
- Can be connected in a cluster with other Omnia instruments
Manufacturing:
- Rugged case milled from solid aluminium
- Powder-painted
- 100% manufactured and tested with automatic processes
Functions:
- Customizable color tape

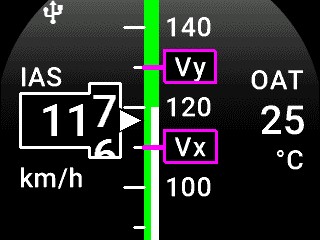

- Vx and Vy setable marks
- OAT indication

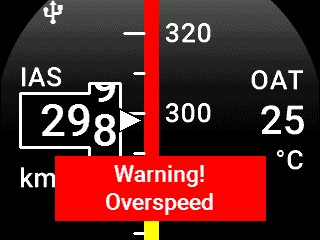

- Alarm on Max speed
- Manual or Automatic Backlight dimmer
- Easy software updating through the USB port
