Omnia VOLT-AMP 57mm is a Volt Meter, a double AMP meter, and a safety instrument that diagnosis the state of the electrical power.
The instrument is fully customizable to fit almost any electrical system.
The Omnia VOLT-AMP can be useful, especially with injected engines that need a full-time operation of the fuel pump when they are working. The system can alert on time in case of anomalies, enabling the pilot to react promptly.
All the components of the Omnia family are equipped with a state-of-the-art, highly visible display, a powerful 32-bit microcontroller, and the latest generation of solid-state sensors and components to ensure reliability and accuracy over time.
Up to 16 Omnia family instruments can be connected in the clusters to form a communication network, making some data exchange operations simpler.

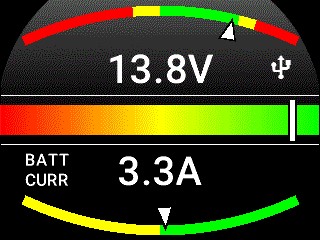

Volt Meter, double Amp Meter, and diagnostic mode are enabled. In the picture, the battery current is shown. (diagnostic mode requires 2 current sensors)

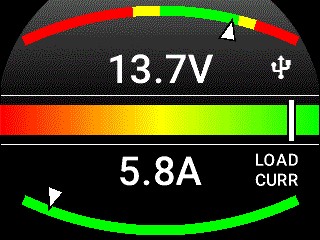

Volt Meter, double Amp Meter, and diagnostic mode are enabled. In the picture, the load’s current is shown. (diagnostic mode requires 2 current sensors)

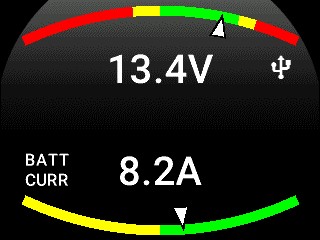

Volt Meter and battery current are enabled

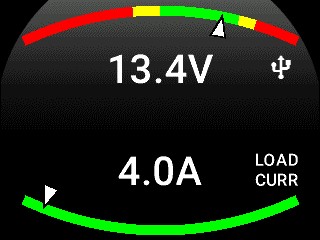

Volt Meter and loads current is enabled
Diagnostic mode is enabled and the “CHECK” label is flashing because the voltage has dropped to 12.2V and only the battery is supplying current to the loads. (diagnostic mode requires 2 current sensors)
- 1 Volt Meter
- 1 Battery current
- 1 Load current
- Knob with pushbutton
- 2 CAN bus
- Light Sensor input
- USB 2.0 port
- Can be connected in a cluster with other Omniainstruments
- Rugged case milled from solid aluminum
- 100% manufactured and tested with automatic processes
- Visual Alarm on screen
- Transistor Alarm output
- Electrical system diagnostics
- Manual or Automatic Backlight dimmer
- Easy software updating through the USB port
