EDM 350 BASIC

Description

The EDM350 is for Experimental Aircraft Only
Compact size, full customization features, with legendary JPI quality and accuracy. The Engine Data Management 350 system is the most cost effective, reliable piston engine experimental EDM instrument on the market.

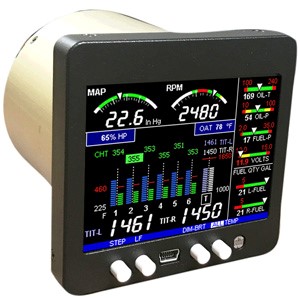

The compact Engine Data Management 350 system (3.5″ square) is a very advanced and accurate piston experimental engine-monitoring instrument. You can order the basic model with options, or go with the Full featured model with the P5 connector (additional $200.) that also includes Amps, Fuel Pressure & Fuel Quantity as options. The EDM 350 is not just another black box along for the ride. It is a Flight Engineer, Maintenance Manager, and Backup Instrument, whose compact size can easily fit in your panel.

With the EDM 350, it is now possible to have substantially more diagnostic
information available to you in a timely and usable manner.
• Improved engine efficiency
• Reduced maintenance costs
• Greater fuel economy
• Reduced operating costs
• Smoother engine operation
• Proper engine temperatures
• Longer spark plug life
• Reduced engine vibration
EGT 4 or 6 probes
CHT 4 or 6 probes
Volts
Shock cooling
LOP/ROP JPI Exclusive Leaning Mode
Fuel Flow (USED, Remaining, GPH
Endurance, GPS destination)
MAP
Oil Temperature
Oil Pressure
OAT
%HP (Requires: OAT, RPM, MAP, & FF )

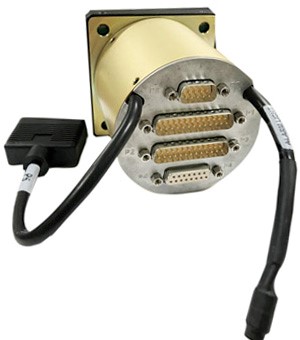

Power connector
All required Harness
EZTrends
Data recording-100 hrs. Download USB
1 GB memory stick
Selectable Positions for Linear gauges
3 year Warranty
Optional functions
CDT
IAT
CARB Temperature
TIT
